Full Description

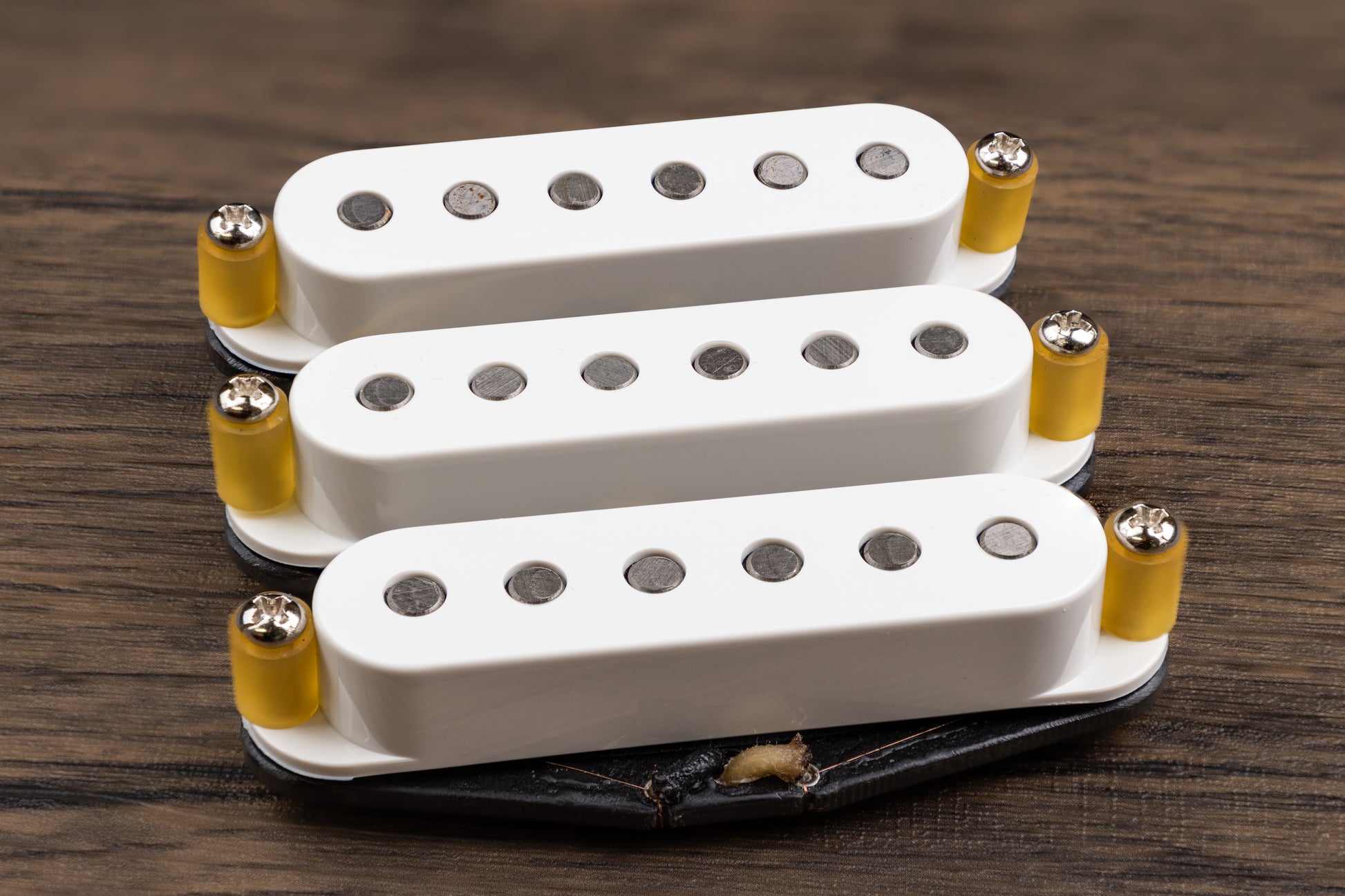

Two fat, full neck and mid pickups mixed with a hotter bridge. A rich bass and tempered bell-like trebles make this a set for the bluesman and rocker alike!
The City Limits set uses A5 magnets with our "Modified Vintage Stagger" allowing for great string to string balance on a wide range of instruments.
Each pickup is fully wax potted to reduce any microphonic feedback, and comes supplied with screws, latex height adjustment tubing and an installation guide.
Neck 6.0k / Mid 6.1k / Bridge 8.9k
Tech Specs
| City Limits Neck | City Limits Middle | City Limits Bridge | |
|---|---|---|---|
| Model | S2N | S2M | S2B |
| Magnet | Alnico 5 Rod | Alnico 5 Rod | Alnico 5 (E-A-D), Alnico 2 (G-B-e) |
| DCR | 6.0k | 6.1k | 8.9k |
| Inductance | 2.55H | 2.6H | 3.8H |
| Stagger | TR Vintage Modified | TR Vintage Modified | TR Vintage Modified |
| Hookup Wire | Vintage Braid | Vintage Braid | Vintage Braid |
| Winding Direction | Clockwise | Counter-Clockwise | Clockwise |
| Polarity | North Pole Up | South Pole Up | North Pole Up |
Dimensions
Wiring Diagrams
- 2 Humbuckers / 1 Single Coil / 1 Vol / 2 Tone / 5-Way Blade / DPDT Mini-Toggle Split
- 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade / Push-Pull Coil Split (Volume)
- 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade (Autosplit)
- 1 Humbucker / 2 Single Coils / 1 Vol / 1 Tone / 5-Way Blade (Autosplit)
- 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade
- 1 Humbucker / 2 Single Coils / 1 Vol / 1 Tone / 5-Way Blade
- 3 Single Coils / 1 Vol / 2 Tone / 5-Way Blade (Bridge Tone Mod)
- 3 Single Coils / 1 Vol / 2 Tone / 5-Way Blade
Full Description
Two fat, full neck and mid pickups mixed with a hotter bridge. A rich bass and tempered bell-like trebles make this a set for the bluesman and rocker alike!
The City Limits set uses A5 magnets with our "Modified Vintage Stagger" allowing for great string to string balance on a wide range of instruments.
Each pickup is fully wax potted to reduce any microphonic feedback, and comes supplied with screws, latex height adjustment tubing and an installation guide.
Neck 6.0k / Mid 6.1k / Bridge 8.9k
Tech Specs
| City Limits Neck | City Limits Middle | City Limits Bridge | |
|---|---|---|---|
| Model | S2N | S2M | S2B |
| Magnet | Alnico 5 Rod | Alnico 5 Rod | Alnico 5 (E-A-D), Alnico 2 (G-B-e) |
| DCR | 6.0k | 6.1k | 8.9k |
| Inductance | 2.55H | 2.6H | 3.8H |
| Stagger | TR Vintage Modified | TR Vintage Modified | TR Vintage Modified |
| Hookup Wire | Vintage Braid | Vintage Braid | Vintage Braid |
| Winding Direction | Clockwise | Counter-Clockwise | Clockwise |
| Polarity | North Pole Up | South Pole Up | North Pole Up |
Dimensions
Installation & Wiring Diagrams
- 2 Humbuckers / 1 Single Coil / 1 Vol / 2 Tone / 5-Way Blade / DPDT Mini-Toggle Split
- 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade / Push-Pull Coil Split (Volume)
- 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade (Autosplit)
- 1 Humbucker / 2 Single Coils / 1 Vol / 1 Tone / 5-Way Blade (Autosplit)
- 1 Humbucker / 2 Single Coils / 1 Vol / 2 Tone / 5-Way Blade
- 1 Humbucker / 2 Single Coils / 1 Vol / 1 Tone / 5-Way Blade
- 3 Single Coils / 1 Vol / 2 Tone / 5-Way Blade (Bridge Tone Mod)
- 3 Single Coils / 1 Vol / 2 Tone / 5-Way Blade
Media

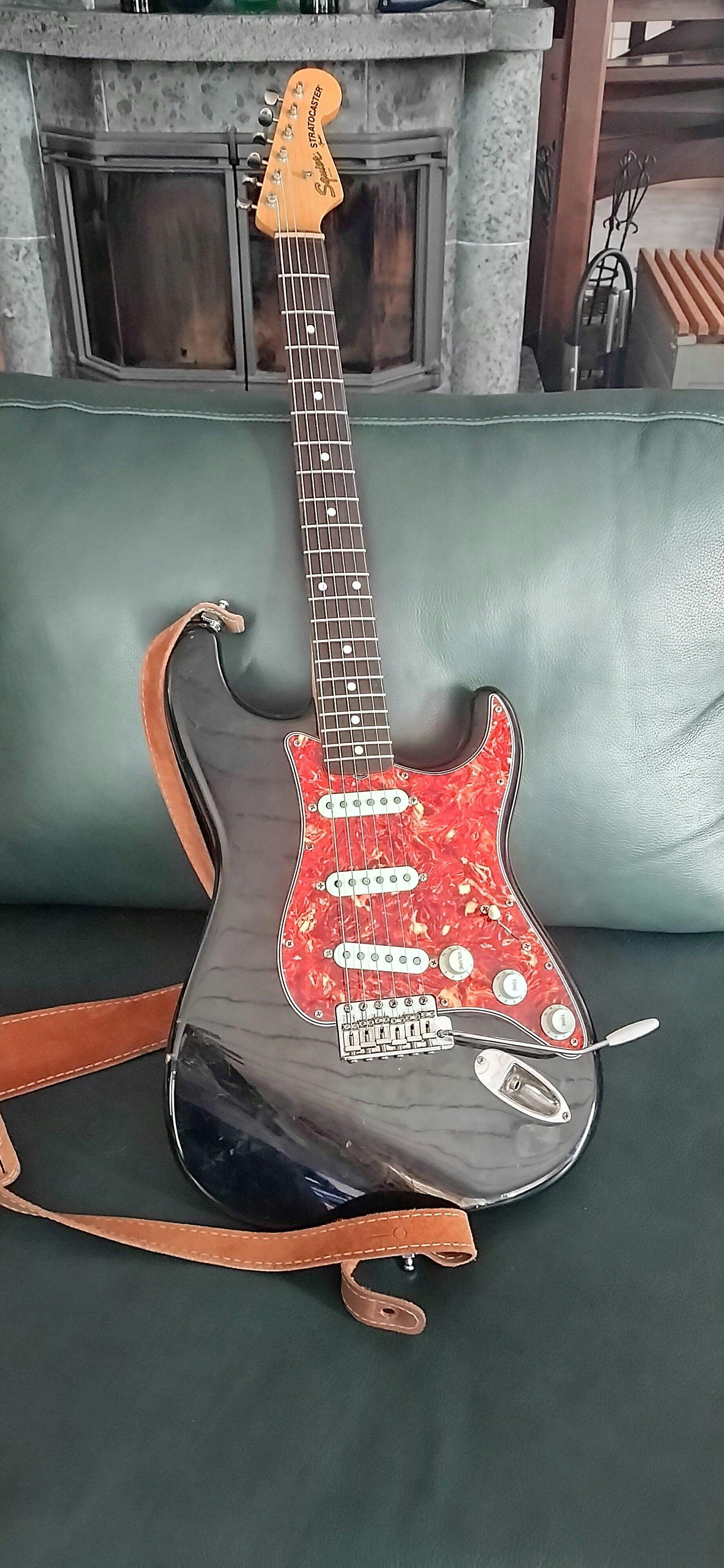

Good experience from "Surfaris" before encouraged me to try these on my Squier JV '62 (export) from 1983. Other "mods" are limited to new set of ABM-saddles and "Bright Lava Red"-pickguard from Crazy Parts (both German made).
Maybe the very first time ever, I found this bridge pickup "ballsy" enough, but still with good balance between all three. This split of A2/A5 magnets in bridge pickup is usually seen in much more pricy sets. After playin' these over four months now, there's not been any frustration with bridge pickup - like so many times before.
Furthermore, neck and middle pickups sound really "Texan" to me.
My pick ups were as described, very fair pricing ! My interaction with Personal was very professional and jery needs and concerns ! Add the pick ups sound amazing !
I recently installed the City Limits bridge pickup and Classic Blues neck and middle pickups in place of the Fender Tex-Mex pickups on my Strat. The difference is like night and day, the City Limits pickup is definitely punchier than the Fender pickup, with a wee bit more sustain as well. All in all, a good choice for the blues/rock player looking for a little more oomph.
Great sounding pickups. Easy to follow along soldering instructions included.
Awesome guitar pickups for Blues and Rock. Creamy guitar tones. I highly recommend them.
