Full Description

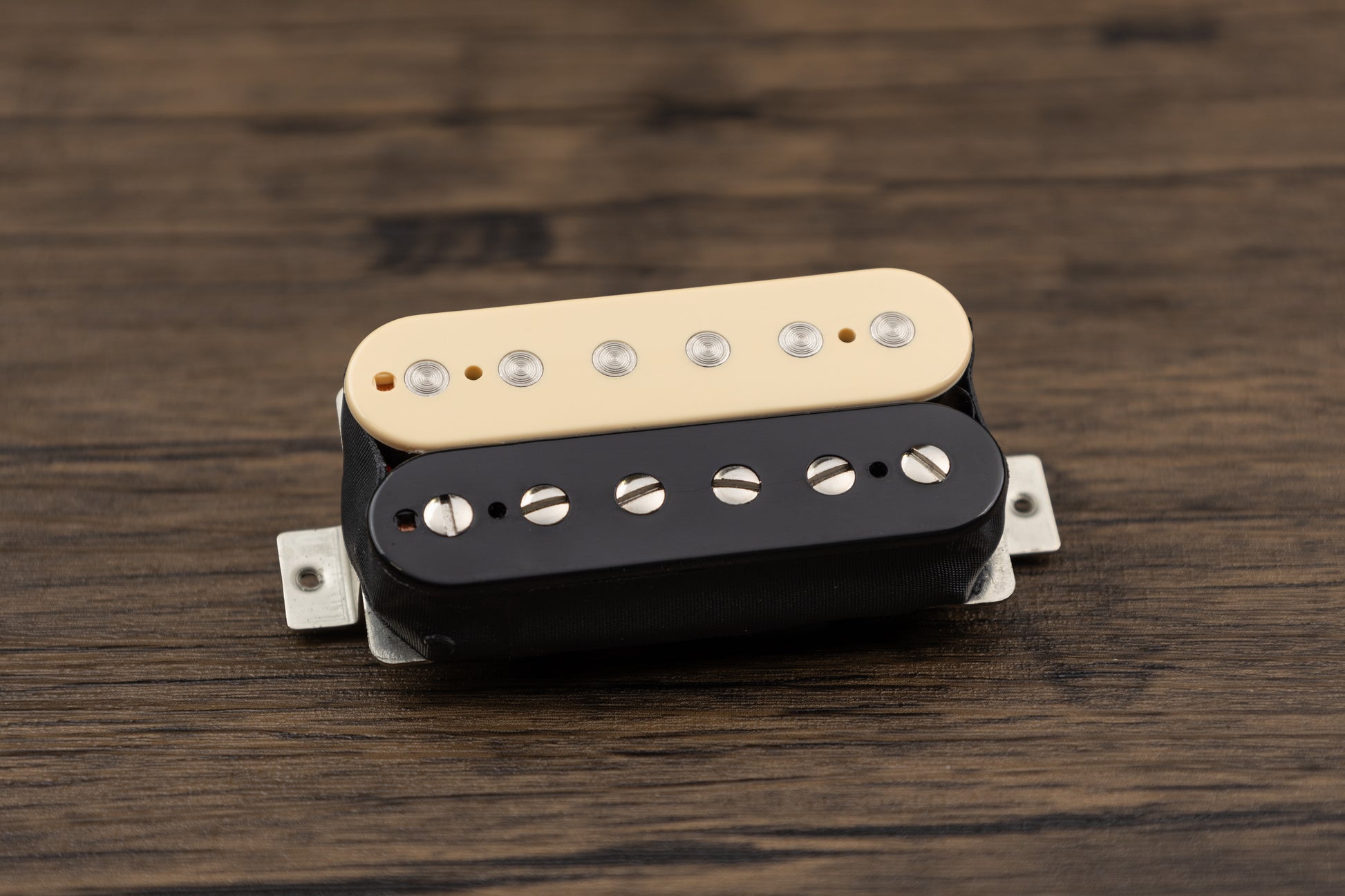

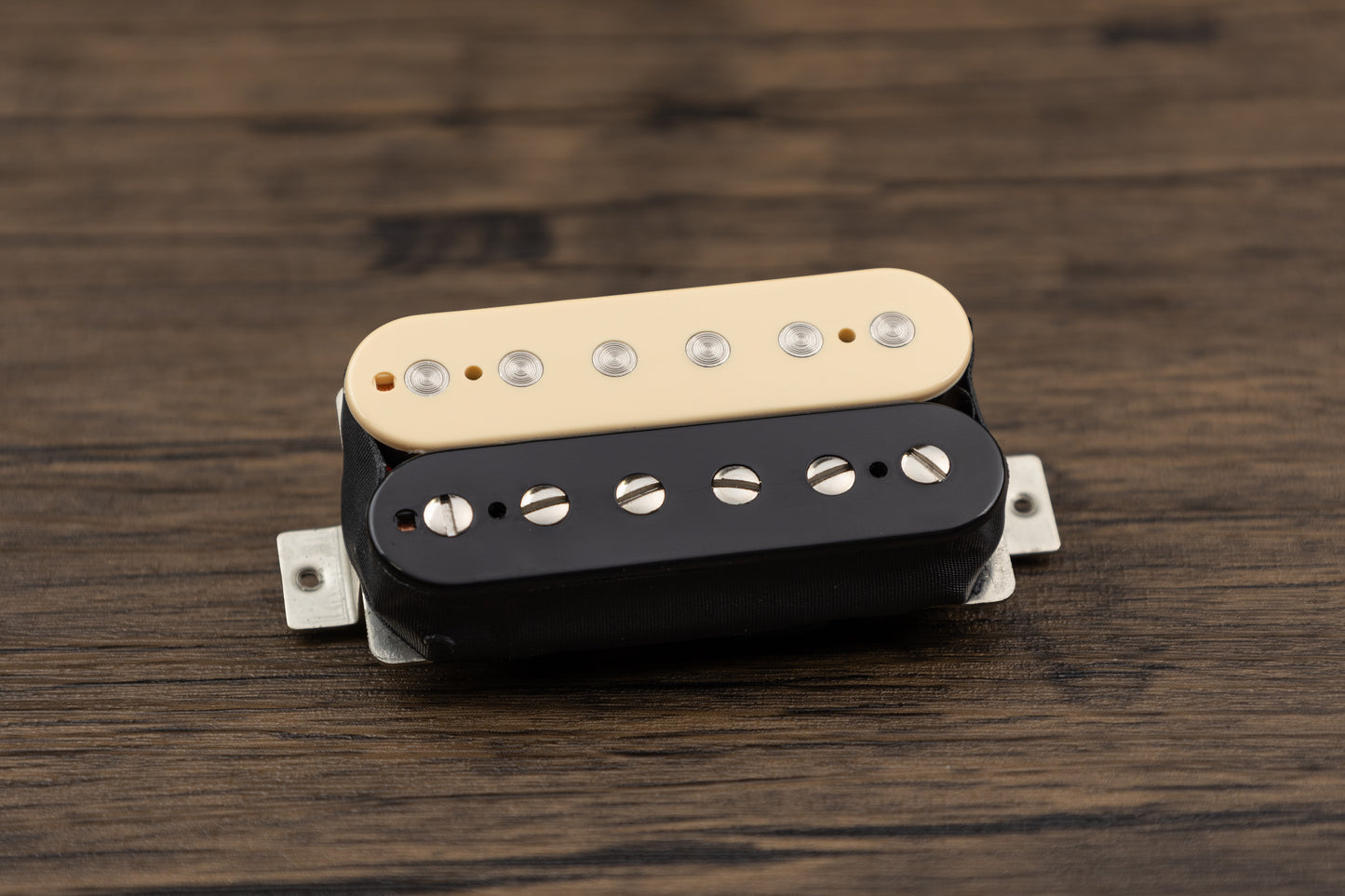

The "Back to the 80s" Humbucker! Relive the sizzle and swagger of the 80s with this high output humbucker. Spandex not included!
A powerful ceramic magnet and scatterwound coils power the Panama, and we've calibrated the neck and bridge winds for an even volume balance across all switch positions. Four conductor is included as standard on all pickups.
Tech Specs
Panama Neck | Panama Bridge | |
---|---|---|
Model | H4N | H4B |
Magnet | Ceramic Bar | Ceramic Bar |
DCR | 11.5k | 14k (F-spaced 14.5k) |
Inductance | 5.3H | 7.6H |
Hookup Wire | 4-Conductor | 4-Conductor |
Baseplate | Nickel Silver | Nickel Silver |
Dimensions
Installation & Wiring Diagrams
- 2 Humbuckers / 1 Vol / 1 Tone / 3-Way Toggle
- 2 Humbuckers / 1 Vol / 1 Tone / 3-Way Toggle / Push-Pull Coil Split (Vol)
- 2 Humbuckers / 1 Vol / 1 Tone / 3-Way Toggle / Push-Pull Coil Split (Tone)
- 2 Humbuckers / 2 Vol / 2 Tone / 3-Way Toggle
- 2 Humbuckers / 2 Vol / 2 Tone / 3-Way Toggle / Push-Pull Coil Split
- 1 Humbucker / 1 Vol
- 1 Humbucker / 1 Vol / 1 Tone
- 1 Humbucker / 1 Vol / 1 Tone / Push-Pull Coil Split (Volume)
- 2 Humbuckers / 2 Vol / 2 Tone / 3-Way Toggle (50’s Wiring)
- 2 Humbuckers / 1 Vol / 1 Tone / 5-Way Lever
